Large Industrial Gearboxes for the Most Demanding Applications

In April, we manufactured and delivered five large industrial gearboxes for a renowned Slovenian manufacturer of saws for log cutting, designed for operation in the most demanding conditions of the wood-processing industry.

The delivery included

• 2 × bevel gear units, weighing 142 kg, with a Ø70 mm output shaft
• 1 × bevel gear unit, weighing 233 kg, with a Ø90 mm output shaft
• 2 × shaft-mounted gear reducers, weighing 100 kg, with a Ø60 mm output shaft



All drives were equipped with IE3 high-efficiency electric motors, with or without a brake, depending on the individual application and the requirements of the working process.

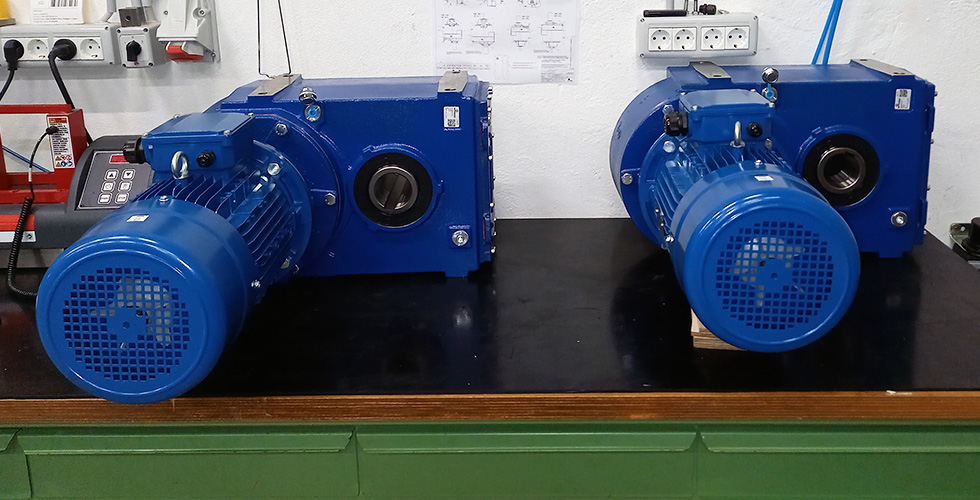

Shaft-mounted gear reducers with IE3 electric motors before dispatch



Reliable operation in the most demanding conditions

In the enquiry, the customer specifically emphasised the need for robust and reliable gearboxes for operation in demanding working conditions, together with an exceptionally short delivery time.

Thanks to our own component inventory and fast assembly within the MAC centre, we achieved a very short response time:

• 2 gearboxes were assembled on the same day after receiving the order,
• the remaining 3 gearboxes were assembled within one day after receiving the housings from the Motovario manufacturer’s warehouse.

The gearboxes were prepared for vertical and horizontal mounting and adapted to the specific requirements of the application. Due to the demanding operating conditions, the customer also selected a higher service factor, i.e. drive oversizing, which provides greater operating reliability, a longer service life and additional operational safety for the system.



Quality oil for a long service life

Before delivery, all gearboxes were filled with high-quality oil from the German manufacturer Addinol – Gear Oil 220 F, which is intended for demanding industrial applications and heavily loaded gear transmissions. The oil has also been tested and approved by Motovario.

Key advantages of ADDINOL Gear Oil 220 F

• exceptionally high lubricant film load-carrying capacity and excellent protection of gears and bearings against wear,
• very good resistance to micro-pitting and shock loads,
• high oxidation and thermal stability for a long oil service life,
• effective protection against corrosion and rust, including in multi-metal systems,
• low foaming tendency, even under demanding operating conditions,
• very good compatibility with elastomers and seals, reducing the possibility of leakage,
• zinc- and ash-free formulation that prevents deposit formation and extends component service life,
• rapid separation of air and water



ADDINOL GEAR OIL 220 F

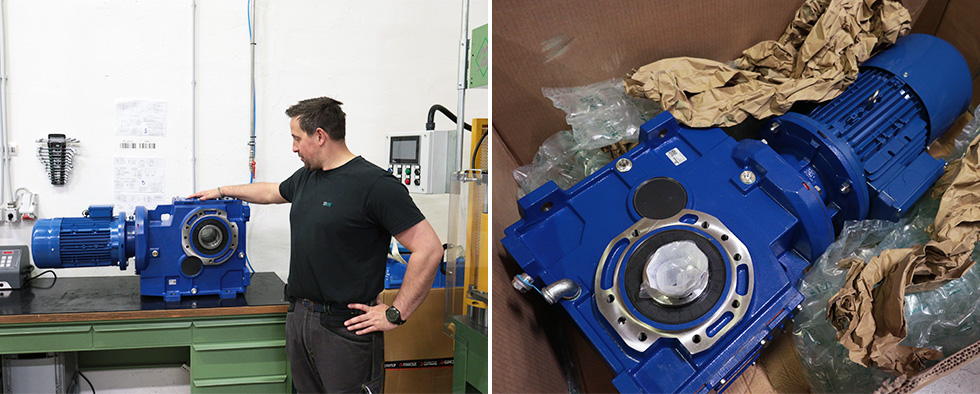

Preparing the drives for safe transport to the customer

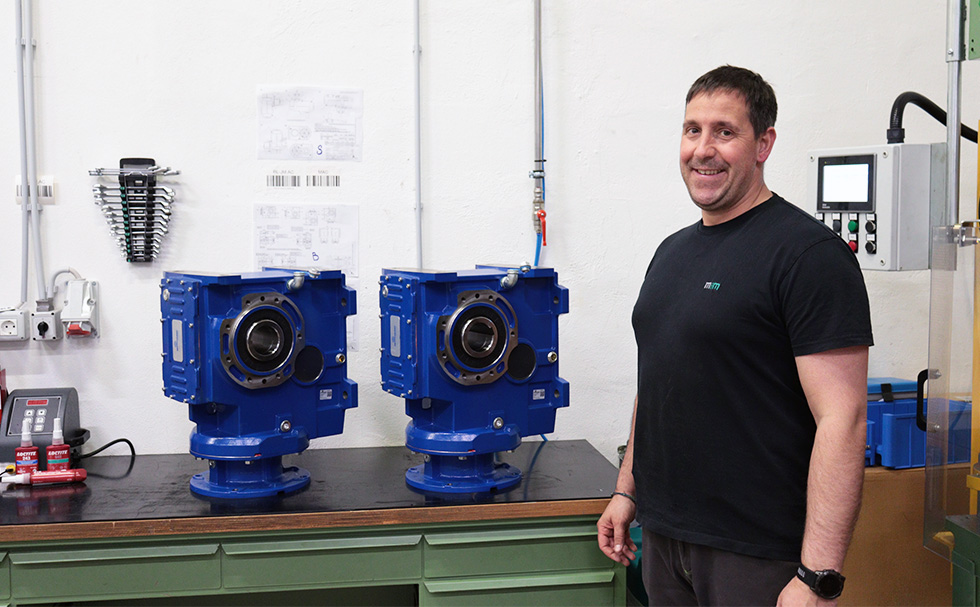

Comprehensive technical support

We provide expert technical support in the selection and sizing of drive solutions, including:

• preparation of technical drive specifications
• 2D drawings and 3D CAD models
• transmission efficiency data
• calculation of the service factor and appropriate drive sizing (drive oversizing)
• assessment of the expected component service life
• advice on the best configuration according to the working conditions



Advantages of our MAC centre

Our MAC assembly centre provides fast and flexible preparation of industrial drives adapted to the specific requirements of each application.

Benefits for customers

• fast assembly and configuration of gearboxes,
• adaptations according to customer requirements,
• significantly shorter delivery times,
• technical support in selecting the most suitable drive,
• various mounting and equipment configurations available,
• verified quality of original components and factory support from Motovario.



If you need higher-power industrial gearboxes, technical support for drive sizing or fast delivery of drive solutions, contact us. Select and complete the form below.
