Profile rail guides or round guides – which should you choose for your application?

What does a linear system consist of?

A basic system consists of a guide rail and a carriage. The carriage contains rolling elements that provide a low coefficient of friction, smooth movement and high load capacity. This is why linear guides are now a standard choice in modern mechanical engineering, automation and positioning systems.

Different linear motion designs

Various linear motion solutions are used in industry. The most common are:

Profile rail guides

High rigidity, high precision and very good load capacity. Designed for demanding industrial applications. Check out our selection in the webshop >>.

Supported round guides (shaft supports)

Good load capacity and easy mounting. Common choice for medium-duty applications. Check out our selection in the webshop >>.

Unsupported round guides (shafts)

Cost-effective solution for lower loads and simpler constructions. Check out our selection in the webshop >>.

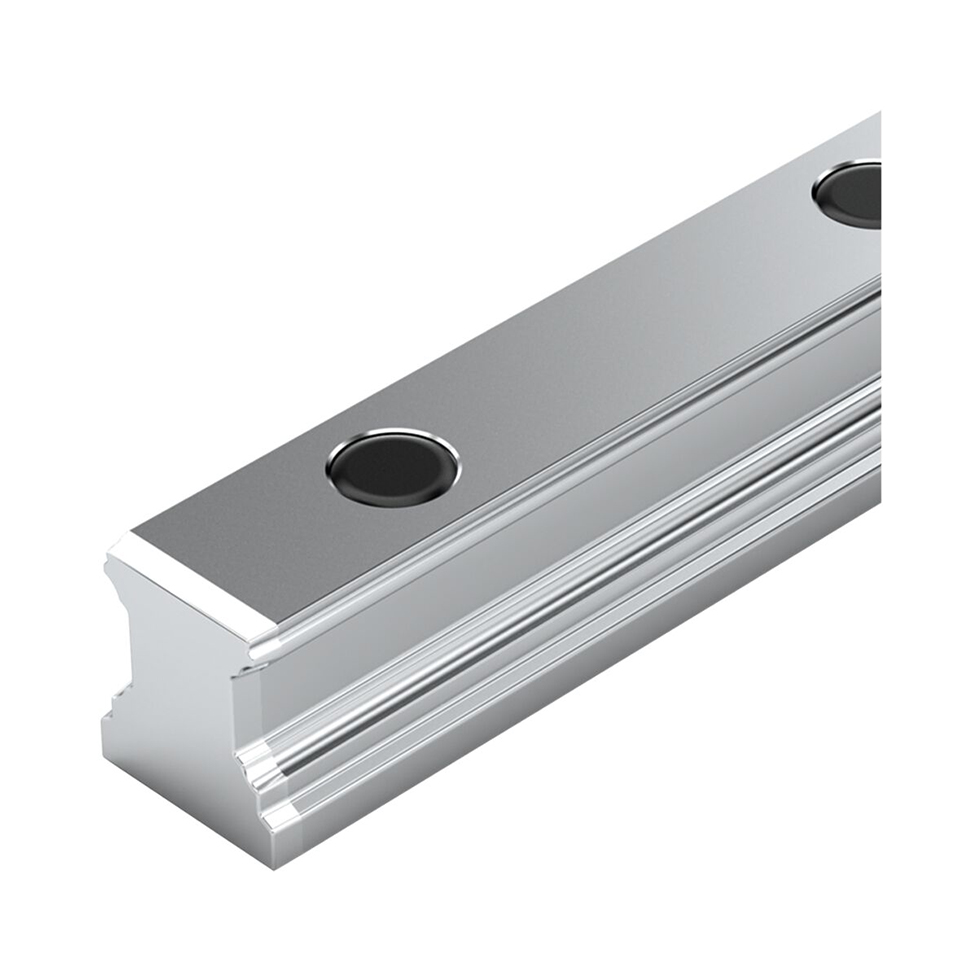

Profile rail guide

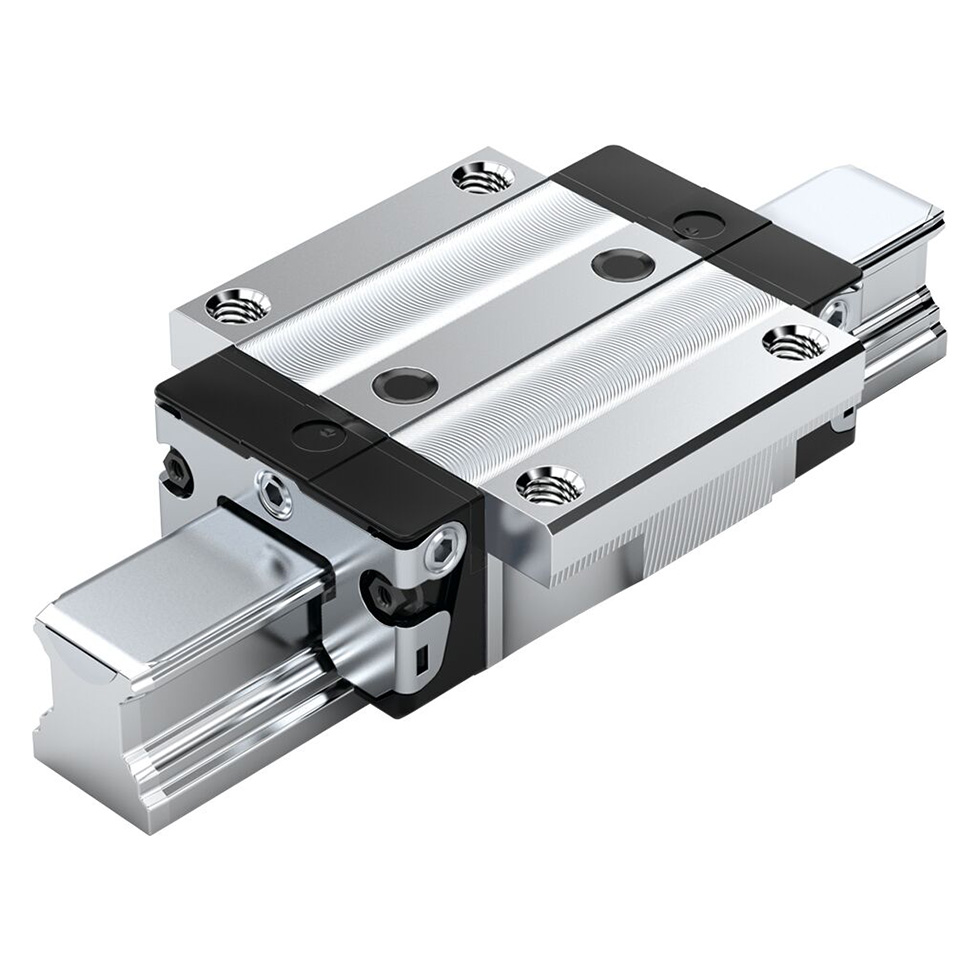

Rail guide with carriage

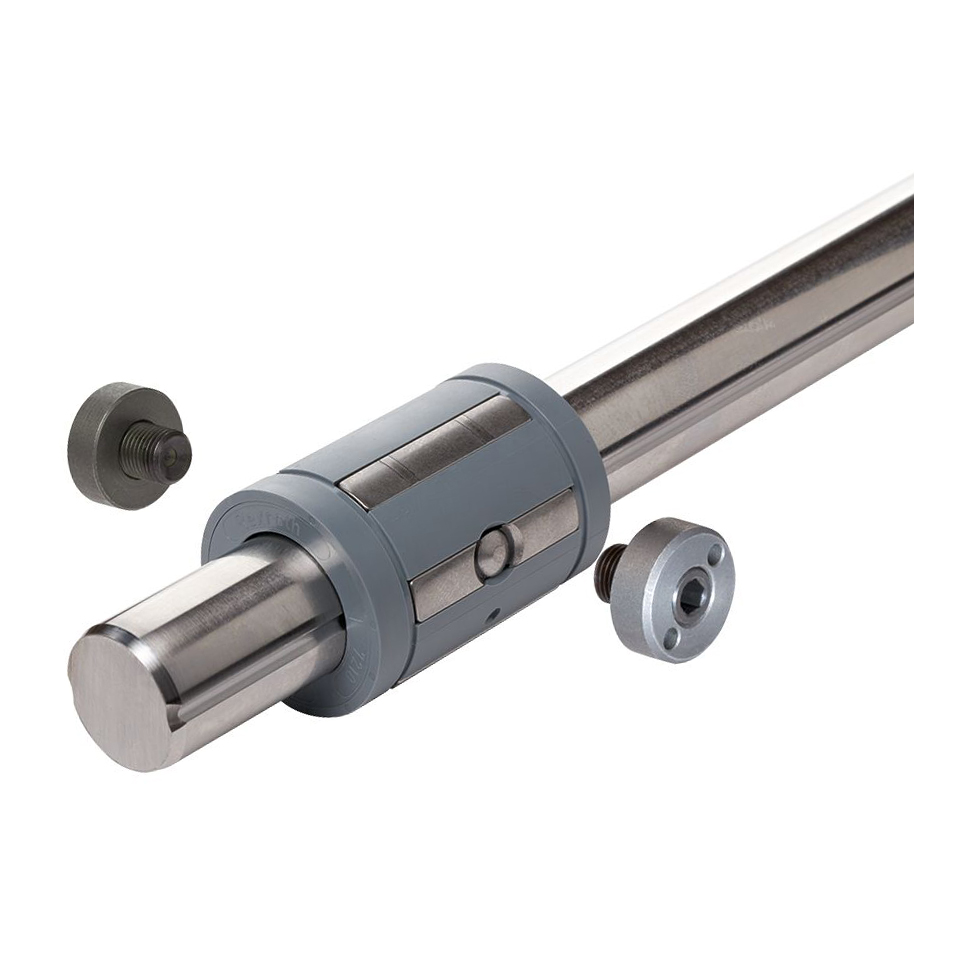

Round guide with linear bearing

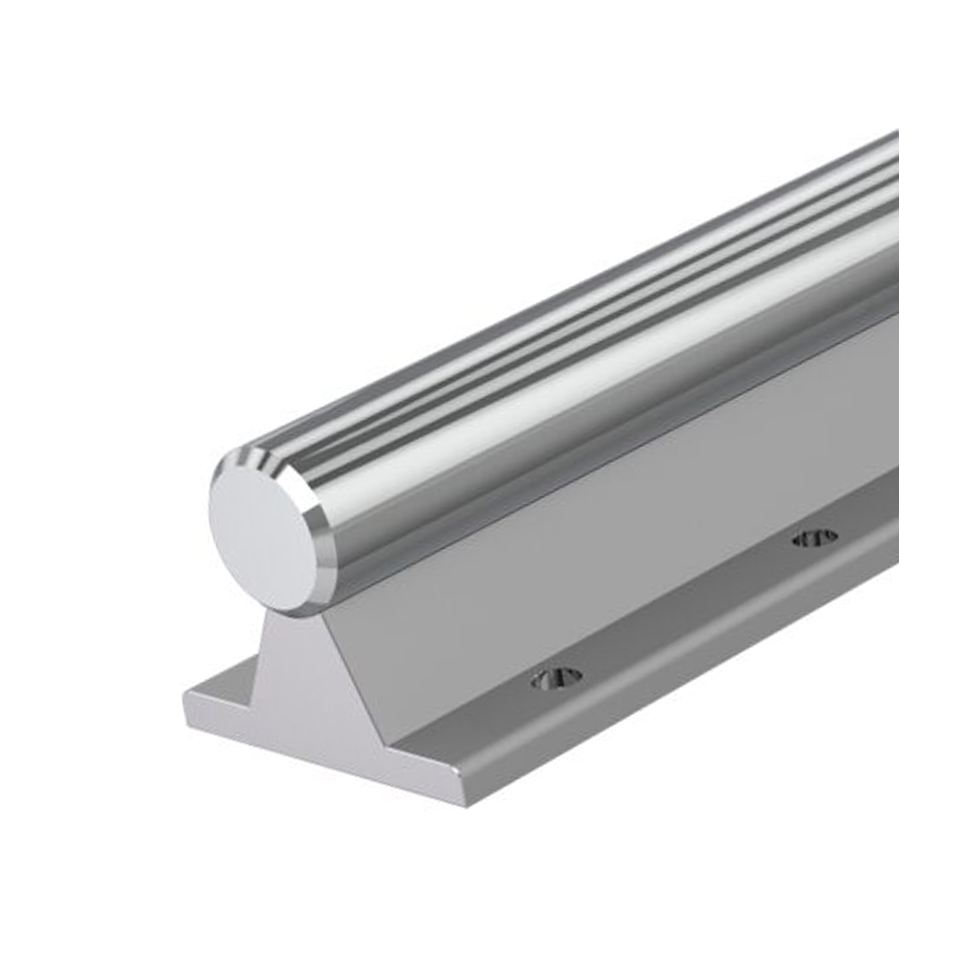

Supported round guide

When should you choose profile rail guides?

When the key requirements for an application are precision, stability and rigidity and long service life, profile rail guides are usually the first choice in practice. This solution is especially suitable for automated lines, CNC equipment, handling systems and all applications with higher loads or higher requirements for repeatable motion.

Where do problems most often occur?

Problems are usually not related to the quality of the guide rail itself, but to an incorrect choice or implementation of the system. The most common reasons are:

• incorrect selection of the linear motion system
• incorrect sizing of the guide rail or carriage
• insufficient lubrication
• incorrect installation and alignment
